2015 + Ford Mustang Ecoboost Boost Operated Bypass Valve (Full Recirculation)

  • Image 1
  • Image 2
  • Image 3
  • Image 4
  • Image 5
  • Image 6
Calculated at checkout

Product Description

Installation Video


Routing Diagram



Want the added strength and performance of our Blow Off Valve but not the biggest fan of the added noise?

Search no longer!

Introducing the Boomba Racing Bypass Valve.

This piece is very similar to our Blow Off Valve, but rather than venting to atmosphere, this vents back to intake.

Also, for all you Europe Spec/MAF tuned cars: THIS PIECE IS 100% SAFE TO RUN!




Boomba Racing is proud to announce our Boost Operated Bypass Valve for the 2015+ Mustang Ecoboost.

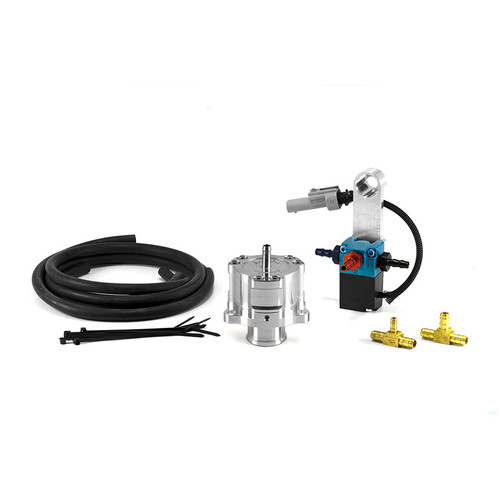

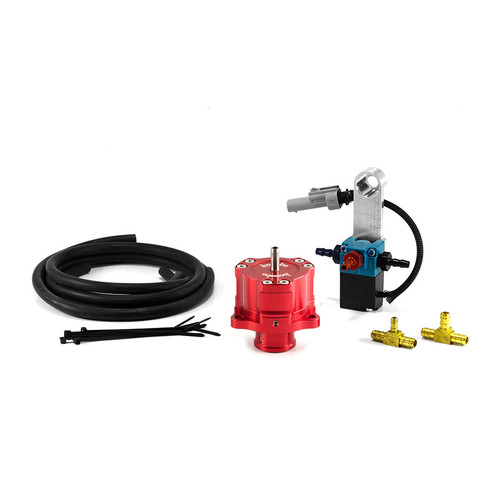

This kit will replace your weak and leaky OEM bypass valve in favor of something much more up to the job. The Boomba Racing Boost Operated Bypass Valve comes with everything you need to install on your vehicle for a true plug and play installation. It features 100% vent to intake operation and billet aluminum construction with a brass piston to ensure leak-free operation for years to come.


The Boomba Bypass Valve uses an ECU controlled solenoid that provides the bypass valve with both vacuum and boost pressure. Using boost to close the valve keeps it sealed no matter what the boost pressure is. The higher the amount of pressure, the stronger force there is keeping the valve closed. Vacuum is used to keep the valve open in this configuration. This with the combination of the ECU controlled solenoid prevents the valve from any fluttering or premature opening. This also works to eliminate any unwanted pressure spikes during venting. The purpose of this bypass valve is to prevent turbo lag and allow the car to hold boost in a steadier manner. When the throttle plate closes, excess boost pressure is vented so that the turbo can continue to spin during higher RPMs rather than surge from backpressure. The bypass valve is tested to over 75 PSI to ensure leak-free operation. The electrical connection on the provided solenoid matches right up with your factory wiring and there is no need to splice or trick your ECU with resistors.


Don’t hesitate; pick up lost power by replacing your leaky factory BPV with a Boomba BPV, today! See the attached dyno chart which demonstrates the power we picked up by switching from stock.


As always this product is designed and manufactured 100% in-house in the USA.


Available in your choice of color: Onyx Black, Royal Blue, Race Red, or Pure Aluminum







Product Color Disclaimer
Due to variances in the anodizing stage of production that are beyond our control, actual color hue may be different than what is pictured and what has also been previously offered by Boomba Racing. We apologize for any inconvenience and we sincerely appreciate your understanding. For further clarification, feel free to contact us.



Find Similar Products by Tag

2.3  adapter  Blow  boomba  bov  bpv  by  bypass  bypass valve  Ecoboost  Ford  Golf  gti  intake  mk7  Mustang  Off  pass  racing  recirc  recirculation  to  Valve  vent  volkswagen  vw

Find Similar Products by Category

Write your own product review

Product Reviews

  1. 2015-Up Mustang Ecoboost Bypass Valve 5 Star Review

    Posted by on 30th Jun 2018

    Well made and complete kit. Very easy to install. Worst part was the limited room to remove the turbo fitting and the valve itself, which was nothing but a minor inconvenience. Watch the u-Tube videos and you'll be all right.
